How are steel balls manufactured?
Views: 364 Update Date:May 21 , 2024

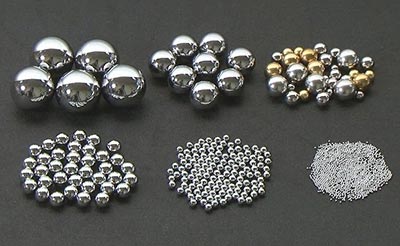

Steel balls, used in various applications such as bearings, ball screws, and valves, are manufactured through a multi-step process that ensures high precision and durability. Here's an overview of the manufacturing process:
1.Wire Drawing:
Material: The process starts with a long wire rod, typically made of high-carbon steel, stainless steel, or other suitable alloys.
Drawing: The wire rod is drawn through a series of dies to reduce its diameter to the desired size.
2.Cold Heading:
Cutting: The wire is cut into small pieces, each piece being the same size as the volume of one finished ball.
Forming: These pieces are then cold-headed, a process where the cut wire is placed into a mold and struck by a punch to form a rough spherical shape. This step can involve one or two blows, depending on the precision required.
3.Flashing:
Grinding: The roughly formed balls are placed between two heavy, hardened steel plates, one of which is fixed while the other rotates. This grinding process, known as flashing, removes the excess material and creates a more precise spherical shape.
After heat treatment, the balls are ground to remove any surface imperfections and achieve a more accurate size. This process involves several stages of grinding with progressively finer abrasives.
5.Lapping:
Precision Grinding: The balls undergo lapping, where they are placed in a special lapping machine with abrasive slurries. This process further refines their size, shape, and surface finish to achieve high precision and smoothness.
6.Polishing:
The balls are polished to give them a shiny, smooth surface. This step often involves tumbling the balls in a rotating drum with polishing compounds.
7.Inspection:
The finished balls are inspected for size, roundness, surface finish, and hardness. Various measurement tools and techniques, such as micrometers, roundness testers, and surface finish testers, are used to ensure they meet strict quality standards.
8.Packaging:
After passing inspection, the steel balls are cleaned, dried, and packaged for shipment to customers.
Each step in the process is crucial to producing high-quality steel balls that meet the stringent requirements of different applications. Advanced technologies and precision machinery are used throughout the manufacturing process to ensure consistency and accuracy.
